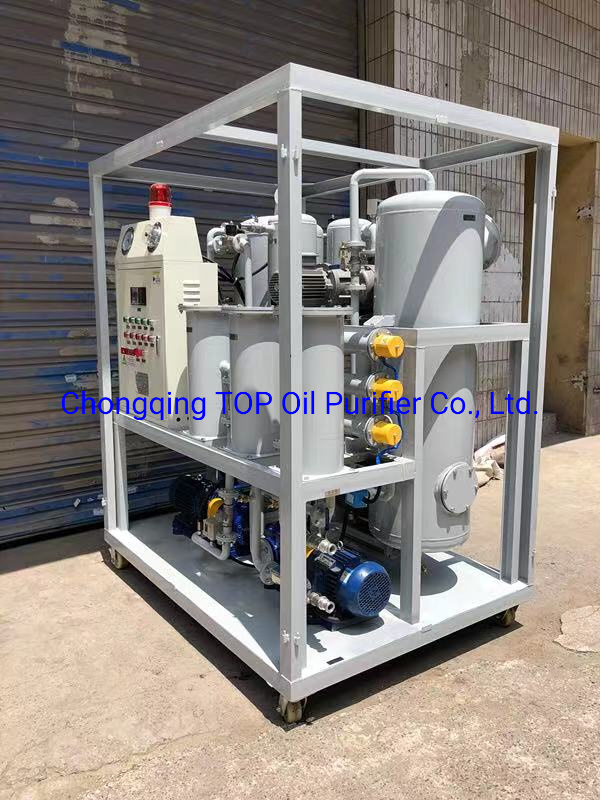

High vacuum transformer oil filtration plant dielectric oil filter machine
Product Application
This High vacuum transformer oil filtration plant dielectric oil filter machine is designed to overhaul and install the electric insulating equipments which
energized on transformer oil, switch oil and mutual oil. It is especially applied to purify and
regenerate the seriously deteriorated insulating oil.
Product Features
Beside the common function, this machine can regenerate the seriously deteriorated oil by
removing the polarity materials such as the deep oxides, free carbon.
The vacuum dehydration, degassing and particles removal system can be sued individual or
as integrity
Technical Parameter
Our Services
Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers' best choice to secure good communication,
on time delivery, reliable warranty etc.
OEM is available for TOP Products.
Protection of your sales area, ideas of design and all your private information.
1. Transformer Oil Purifier:
This kind of machine is used to purify used transformer oils by vacuum separation
technology to remove water, gas, particles.
2. Lube Oil Purifier:
This machine is to filter used lube oils, such as hydraulic oil, gear oil and other lubricants.
It can effectively break emulsification and completely remove water, gas, particles.
3. Cooking oil recycling machine:
This machine is used to recycle waste cooking oil, dirty vegetable oil, drainage oil, swill
oil and animal oil etc., it effectively and completely removes particles, odor, water, gas,
etc. from waste oil. The treated oil is clean and good smell.
4. Transformer Oil BDV Tester:
This tester with automatic operation system is ued to online monitor transformer oil's
dielectric strength.
5. Oil Water Content Testing Machine:
This device is designed to test water content in oil to make sure the oil is suitable for
further use.
About us:
Hello Friend!
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.
TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Product Application
This High vacuum transformer oil filtration plant dielectric oil filter machine is designed to overhaul and install the electric insulating equipments which
energized on transformer oil, switch oil and mutual oil. It is especially applied to purify and
regenerate the seriously deteriorated insulating oil.
Product Features
Beside the common function, this machine can regenerate the seriously deteriorated oil by
removing the polarity materials such as the deep oxides, free carbon.
The vacuum dehydration, degassing and particles removal system can be sued individual or
as integrity
Technical Parameter
| Parameters | Unit | ZYB-20 | ZYB -30 | ZYB -50 | ZYB -100 | ZYB -150 | ZYB -200 | |
| Capacity | L/h | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
| Vacuum pressure range | Mpa | -0.08~-0.095 | ||||||
| Pressure working | Mpa | ≤ 0.3 | ||||||
| Temperature range | °C | 10~ 80 | ||||||
| Working noise | dB(A) | ≤68 | ≤70 | ≤72 | ≤75 | ≤80 | ≤80 | |
| Heating power | kW | 18 | 24 | 30 | 45 | 60 | 72 | |
| Total power | kW | 22 | 28 | 35 | 50 | 68 | 80 | |
| Oil inlet (outlet) caliber | mm | Ø25 | Ø25 | Ø32 | Ø42 | Ø50 | Ø50 | |
| Dimension | L | mm | 1500 | 1600 | 1600 | 1600 | 1600 | 1700 |
| W | mm | 900 | 900 | 900 | 950 | 950 | 1000 | |
| H | mm | 1550 | 1650 | 1700 | 1700 | 1800 | 1900 | |
| Weight | kg | 400 | 450 | 600 | 800 | 850 | 900 | |
| Moisture | PPM | ≤5 |
| Gas content | % | ≤0.1 |
| Impurity size | μ | ≤1 (no free carbon) |
| Breakdown voltage | kV | ≥70 |
| IFT | dynes/cm | ≥40 |
| Acid value | mgKOH/g | ≤0.03 |
| Dielectric loss factors | tgδ(90°C) | ≤0.001 |
Our Services
Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers' best choice to secure good communication,
on time delivery, reliable warranty etc.
OEM is available for TOP Products.
Protection of your sales area, ideas of design and all your private information.
1. Transformer Oil Purifier:
This kind of machine is used to purify used transformer oils by vacuum separation
technology to remove water, gas, particles.
2. Lube Oil Purifier:
This machine is to filter used lube oils, such as hydraulic oil, gear oil and other lubricants.
It can effectively break emulsification and completely remove water, gas, particles.
3. Cooking oil recycling machine:
This machine is used to recycle waste cooking oil, dirty vegetable oil, drainage oil, swill
oil and animal oil etc., it effectively and completely removes particles, odor, water, gas,
etc. from waste oil. The treated oil is clean and good smell.
4. Transformer Oil BDV Tester:
This tester with automatic operation system is ued to online monitor transformer oil's
dielectric strength.
5. Oil Water Content Testing Machine:
This device is designed to test water content in oil to make sure the oil is suitable for
further use.
About us:
Hello Friend!
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.
TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
