    Yarn Thread wound PP/Fiberglass/Cotton Micron Cartridge Filter 10/20/30/40/50 inch
String wound water filter cartridge Introduction:

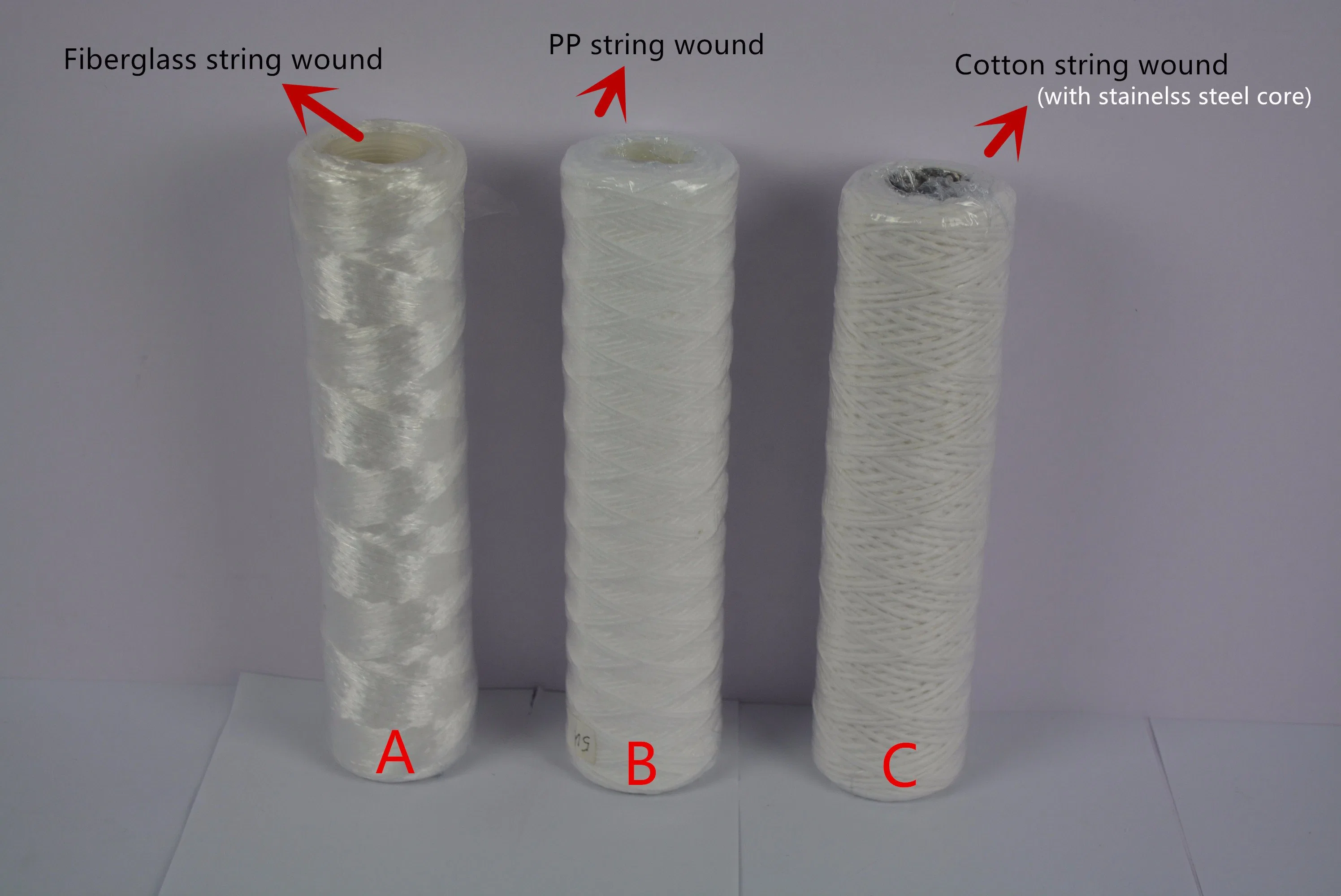

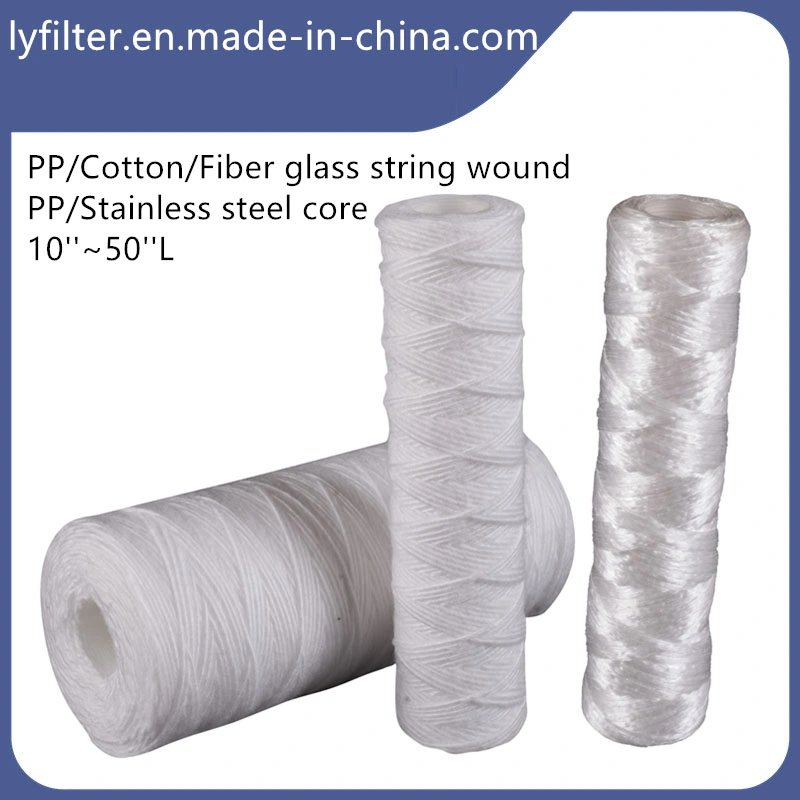

Our String spiral wound filter cartridge is made of the textile fabric string (polypropylene / PP, absorbent cotton, fiber glass) preciously winding onto the multi-hole axles. They can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions. This kind of cartridge is use for industrial pre-filtering water treatment.
Yarn Thread Wound PP/Fiberglass/Cotton Micron Cartridge Filter 10/20/30/40/50 Inch

String wound water filter cartridge Applications:
1. Drinking water treatment
2. Industrial water treatment, like power, plating and oil industry.
3. Food and Beverage
4. Electronic
5. Pre-filtration or RO Reverse Osmosis system
6. Chemical, solvent, wine, etc.

String wound water filter cartridge Specifications:
ProductString wound filter cartridge
MaterialPolypropylene, absorbent cotton, glass fiber
Precision filtration1~100 micron
Outer diametr60~62mm, Jumbo 110~115mm
Inner diameter28mm or 30mm
CodeDOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Seal MaterialEPDM, Silicone, Viton
Length5'', 10'', 20'', 30'', 40'', 50''
Max differential pressure2 kgf/cm²
Max pressure4 kgf/cm²
Max operating temperaturePP with PP core:60 °C
PP with SS core: 100
Absorbent cotton with SS core:120
Glass fibre with SS core: 180~300
Operating differential pressure0.1kgf/cm2
