Membrane Filtration Buffer 0.2um 0.45 micron Pes Filter Cartridges for Serum and Biologicals

Membrane Filter Buffer 0.2um 0.45 Micron Pes Filter Cartridge for Blood Serum and BiologicalsPES pleated filter cartridge is made of pleated polyethersulfone membrane, polypropylene non-woven fabrics and polypropylene cage. During the production, it is purity, free of surfactants, resins, binders and adhesives. It can be used fo

Featured Products

Membrane Filter Buffer 0.2um 0.45 Micron Pes Filter Cartridge for Blood Serum and Biologicals

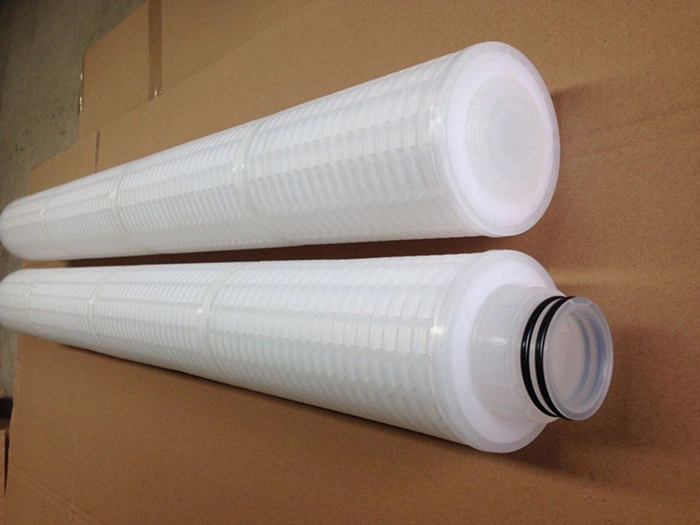

PES pleated filter cartridge is made of pleated polyethersulfone membrane, polypropylene non-woven fabrics and polypropylene cage. During the production, it is purity, free of surfactants, resins, binders and adhesives. It can be used for the liquid critical filtration.

Main Characteristics:

1. Asymmetry polyethersulfone membrane provides high dirt holding capacity

2. Hydrophilic membrane with geometrically unique pores

3. High flow rate

4. Lower protein binding, super chemical tolerance and thermal stability

5. Filtration effective is up to 99.9999%

6. Ideal materials for critical filtration

7. All products have passed 100% integrity testing

8. Meet the current FDA standard

9. Clean and flushed with Pyrogen-free water. Rinse up to 17-18 Ω

10. Meet the requirements of electronic industry


Micron Rating(µm): 0.04   0.1   0.2    0.45   0.65    0.8    1.2

Typical Applications:


1. API, LPV, blood serum, biologicals, buffers and other pharmaceuticals

2. Ultrapure water and disk, display, multi silicon process water in electronic

3. Sterile Filtration of Food & Beverages, Wine, Beer, Mineral Water

5. Fine Chemicals


Specifications:


Filter mediumPES Membrane
Support LayerPolypropylene
Inner CorePolypropylene
Outer CorePolypropylene
inner Diameter33mm
Outer Diameter68mm
Effective Filtration Area≥0.60m2
Normal Operating Temperature≤60ºC
Max. Operating Temperature80ºC(△P≤0.10Mpa)
Max. Differential PressureNormal Flow direction:4.2 bar at 25ºC, Reverse Flow direction: 2.1 bar at 25ºC
PH Value compatibility1-14
Sterilizing temperatureSteam Sterilization for 30 minutes at 121±2ºC
Endotoxin<0.25 EU/ml
Extractable0.03g/10"
Remark: special requirement of diameter and end caps can be customized
Membrane Filter Buffer 0.2um 0.45 Micron Pes Filter Cartridge for Blood Serum and Biologicals
Membrane Filter Buffer 0.2um 0.45 Micron Pes Filter Cartridge for Blood Serum and Biologicals
Membrane Filter Buffer 0.2um 0.45 Micron Pes Filter Cartridge for Blood Serum and Biologicals

Certifications:

0.22um 0.45 Micron Hydrophilic Nylon/Pes/PVDF/PTFE Filter Membrane for Water Purification
0.22um 0.45 Micron Hydrophilic Nylon/Pes/PVDF/PTFE Filter Membrane for Water Purification



Exhibition:

0.22um 0.45 Micron Hydrophilic Nylon/Pes/PVDF/PTFE Filter Membrane for Water Purification

0.22um 0.45 Micron Hydrophilic Nylon/Pes/PVDF/PTFE Filter Membrane for Water Purification

Shipping&Delivery

0.22um 0.45 Micron Hydrophilic Nylon/Pes/PVDF/PTFE Filter Membrane for Water Purification



Delivery time:

1.If products is in stock, the lead time will be  1-3 days after payment.
2.If not in stock, the lead time will be about  7-15days after payment.

Company Profile:

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.

We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN)  and  polyvinylidene fluoride reinforced microporous membrane(PVDF) in China in 1994.  All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.

0.22um 0.45 Micron Hydrophilic Nylon/Pes/PVDF/PTFE Filter Membrane for Water Purification

Contact us:
Ji'an Qingyuan Qingfeng Filter Equipment Co., Ltd
Tel: 0796-8106818
Address:New Industrial Area,Qingyuan District, Jian City, Jiangxi Province,China

Mobile: +8618370682946 or +8615205958492
Fax:0796-8106818
